TPS7A8001DRBR Texas Instruments
Favorite
CompareFill out the form on the right to obtain a quotation
In Stock
12795
Quick RFQ
Product Attributes
Mfr
Texas Instruments
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Output Configuration
Positive
Output Type
Adjustable
Number of Regulators
1
Voltage - Input (Max)
6.5V
Voltage - Output (Min/Fixed)
0.8V
Voltage - Output (Max)
6V
Voltage Dropout (Max)
0.5V 1A
Current - Output
1A
Current - Quiescent (Iq)
100 µA
Current - Supply (Max)
350 µA
PSRR
48dB ~ 38dB (100Hz ~ 1MHz)
Control Features
Enable
Protection Features
Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
Operating Temperature
-40°C ~ 125°C (TJ)
Mounting Type
Surface Mount

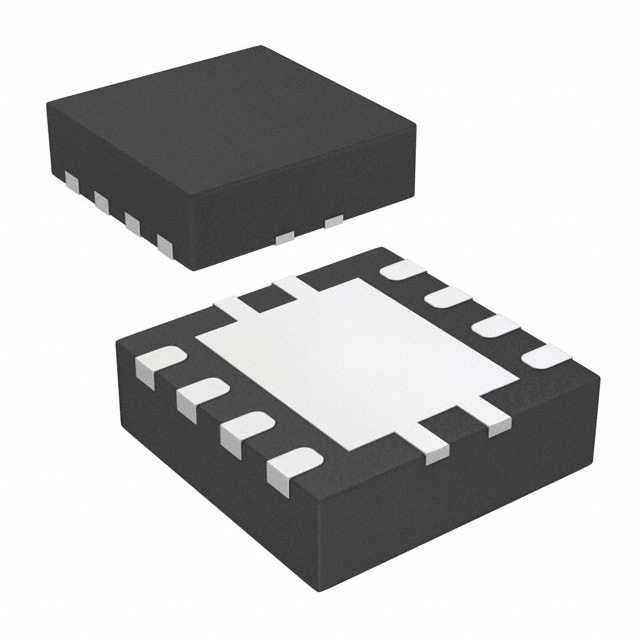

Package / Case
8-VDFN Exposed Pad
Supplier Device Package
8-SON (3x3)
Base Product Number
TPS7A8001
Documents & Media
Datasheets
Featured Product
Power Management
Analog Solutions for Xilinx FPGAs and CPLDs – Texas Instruments | DigiKey
Create your power design now with TI’s WEBENCH® Designer
PCN Design/Specification
Mult Dev Material Chg 29/Mar/2018
Copper Bond Wire Revision B 04/Dec/2013
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
2 (1 Year)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
3,000
