Inductors, Coils, Chokes - Fixed Inductors -

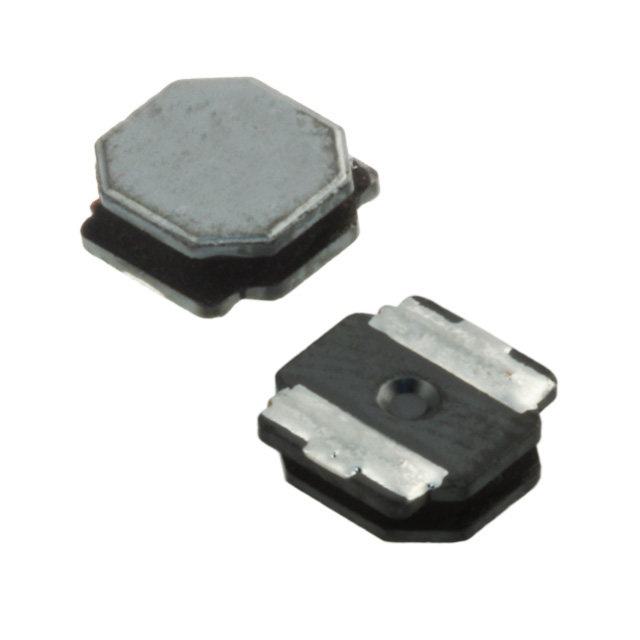

NRS5030T100MMGJ Taiyo Yuden
Favorite
CompareFill out the form on the right to obtain a quotation
In Stock
157136
Quick RFQ
Product Attributes
Mfr
Taiyo Yuden
Series
NR, S Type
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Not For New Designs
Type
Drum Core, Wirewound
Material - Core
Ferrite
Inductance
10 µH
Tolerance
±20%
Current Rating (Amps)
1.7 A
Current - Saturation (Isat)
2.1A
Shielding
Shielded
DC Resistance (DCR)
70mOhm
Q Freq
-
Frequency - Self Resonant
20MHz
Ratings
-
Operating Temperature
-25°C ~ 120°C
Inductance Frequency - Test
100 kHz
Mounting Type
Surface Mount
Package / Case
Nonstandard
Supplier Device Package
-
Size / Dimension
0.193" L x 0.193" W (4.90mm x 4.90mm)
Height - Seated (Max)
0.122" (3.10mm)
Documents & Media
Datasheets
NR(H,S,V) Series Catalog
NRS5030T100MMGJ Spec Sheet
Product Drawings
NRS50xx,NR5040 Series Top
NRS50xx,NR5040 Series Bottom
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.50.4000
-
Additional Resources
Other Names
Standard Package
500
