Filters - EMI/RFI Filters (LC, RC Networks) -

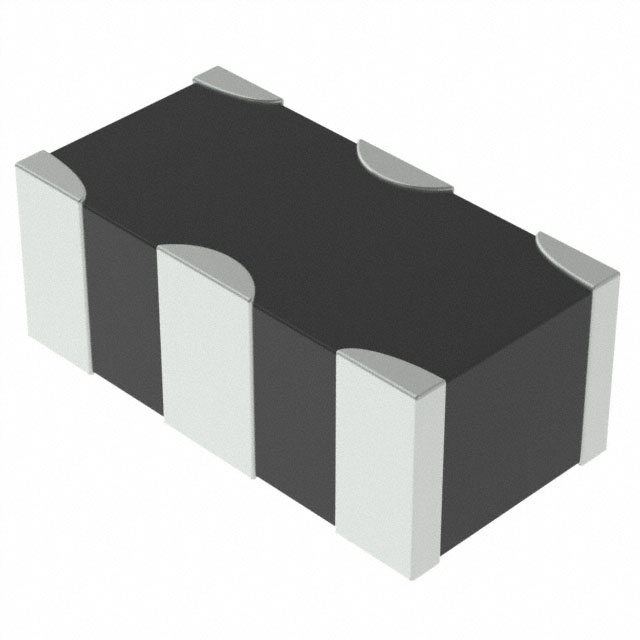

NFL18ST207X1C3D Murata Electronics
Favorite
CompareFill out the form on the right to obtain a quotation
In Stock
7000
Quick RFQ
Product Attributes
Manufacturer
Murata Electronics
Series
EMIFIL®, NFL18
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Type
Low Pass
Filter Order
3rd
Technology
LC (T-Type)
Number of Channels
1
Center / Cutoff Frequency
200MHz (Cutoff)
Attenuation Value
-
Resistance - Channel (Ohms)
3.5
Current
150 mA
Values
L = 110nH, C = 25pF
ESD Protection
No
Operating Temperature
-55°C ~ 125°C
Applications
General Purpose
Voltage - Rated
16V
Mounting Type
Surface Mount
Package / Case
0603 (1608 Metric), 3 PC Pad
Size / Dimension
0.063" L x 0.032" W (1.60mm x 0.80mm)
Height
0.035" (0.90mm)
Base Product Number
NFL18ST
Documents & Media
Datasheets
NFL18ST Series
EMI Suppression Filters Catalog
Chip EMIFIL LC Part Numbering
HTML Datasheet
Chip EMIFIL LC Part Numbering
NFL18ST Series
EMI Suppression Filters Catalog
Product Drawings
NFL18ST Series Footprint
NFL18ST Series Side
NFL18ST Series Top
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8548.00.0000
Additional Resources
Other Names
Standard Package
4,000
