Switches - Magnetic, Reed Switches -

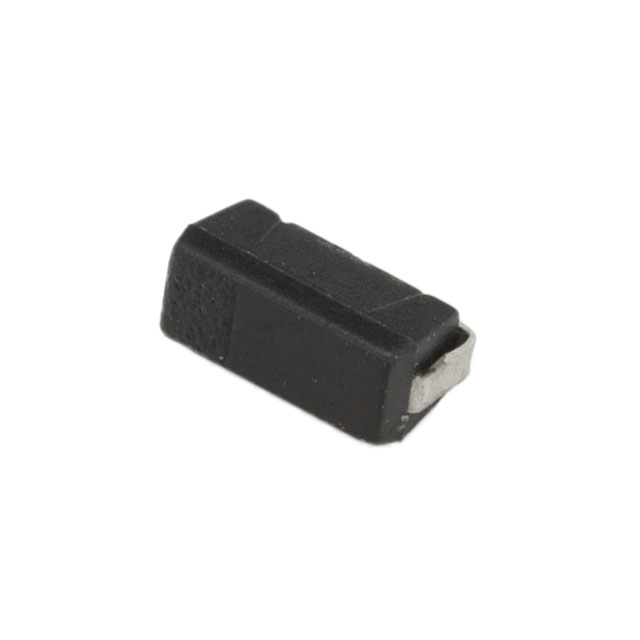

MK24-B-3-OE Standex-Meder Electronics
Favorite
CompareFill out the form on the right to obtain a quotation
In Stock
7000
Quick RFQ
Product Attributes
Manufacturer
Standex-Meder Electronics
Series
MK24
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
Molded Body Reed
Circuit
SPST-NC
Operate Range
20 ~ 40AT
Release Range
10 ~ 35AT
Current - Switching
300mA (AC/DC)
Voltage - Switching AC
30 V
Voltage - Switching DC
30 V
Power - Rated
3W
Operate Time
0.25 ms
Release Time
0.15 ms
Mounting Type
Surface Mount
Termination Style
J Lead
Length - Overall
0.217" (5.51mm)
Size - Body
0.197" L x 0.087" W x 0.102" H (5.00mm x 2.20mm x 2.60mm)
Height Above Board
0.102" (2.60mm)
Operating Temperature
-40°C ~ 115°C
Capacitance
0.1 pF
Current - Carry
500mA (AC/DC)
Documents & Media
Datasheets
MK24-B-3-OE Spec Sheet
MK24 Series Datasheet
Product Training Modules
Magnetic Mapping
Reed Sensors vs. Hall & Electromechanical
Latching Form B Reed Relays Overview
Featured Product
MKxx-MMS Series Reed Sensors
MK24 Reed Sensors
HTML Datasheet
MK24 Series Datasheet
MK24-B-3-OE Spec Sheet
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8536.50.9065
-
Additional Resources
Other Names
Standard Package
500
